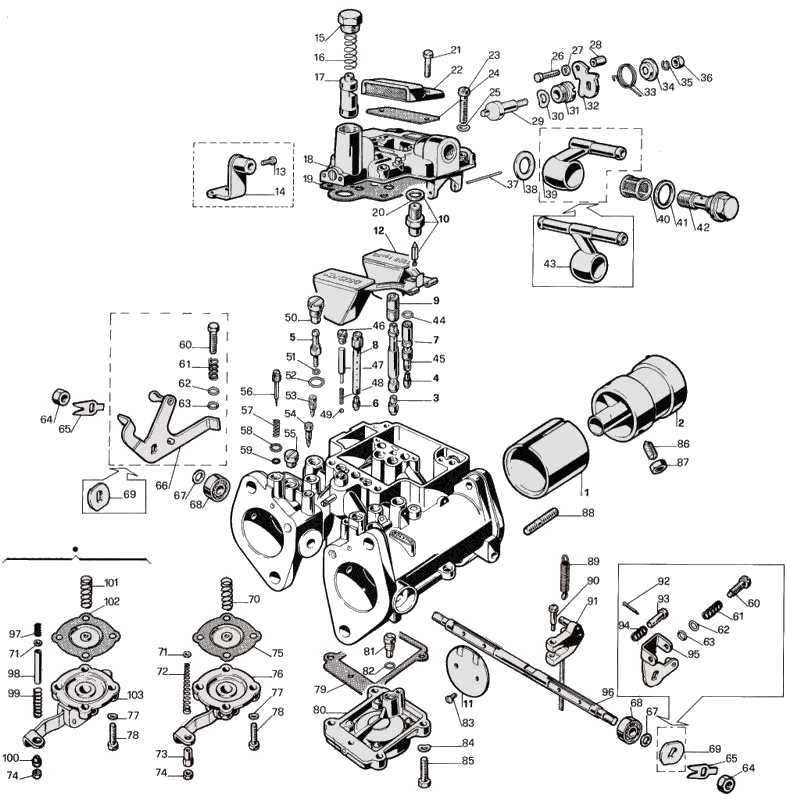

DELLORTO 40 DHLA G parts diagram

- click on part to see more

List of parts:

No	Part No	Price	Pcs	Description
1	8383-32.65	$ 15	2	Choke tube
2	7848-3.68	$ 33.8	2	Auxiliary venturi
3	7484-145.02	$ 5.2	2	Main jet
4	7644-58.02	$ 5.2	2	Idle jet
5	8083-35.02	$ 11.9	2	Pump jet
6	3315-80.02	-	1	Starter jet
7	7772-10.28	$ 18.8	2	Main emulsion tube
8	7482-3.28	-	1	Starter emulsion tube
9	7485-240.01	$ 5.2	2	Air corrector
10	8811-150.33	$ 12.5	1	Needle valve
11	7481-3.64	$ 13.1	2	Throttle plate
12	7298-1.80	$ 27.6	1	Float 10gr
13	6434-36	$ 2.2	1	Fixing screw
14	7488-63	$ 19.9	1	Cold start cable holder
15	7501-34	$ 17.1	1	Cold start cover
16	7413-61	$ 5.6	1	Cold start spring
17	7548-64	$ 37.1	1	Cold start plunger
18	8183-54	-	1	Top cover
19	9358-30	$ 5.6	1	Top cover gasket
20	6425-30	-	1	Needle valve gasket
21	7530-36	$ 2.2	2	Jet cover screw
22	7549-06	$ 11.4	1	Jet cover
23	6430-36	$ 1.9	4	Top cover screw
24	7511-30	$ 4.2	1	Jet cover gasket
25	4997-23	-	4	Top cover spring washer
26	7062-36	$ 9.4	1	Cold start inner cable clamp
27	6850-23	$ 1.2	1	Cable clamp washer
28	6432-27	$ 8.5	1	Cold start cable clamp nut
29	7498-39	-	1	Colt start lever cam
30	7837-23	$ 1.3	1	Actuator cam spring washer
31	7853-34	$ 21.7	1	Cold start cam cover
32	7341-26	$ 5	1	Cold start lever
33	7854-61	$ 5	1	Cold start cable return spring
34	7838-20	$ 7.5	1	Cold start spring cup washer
35	4957-23	-	1	Spring washer
36	2906-27	$ 1.3	1	Choke spring retaining nut
37	7503-22	$ 2.2	1	Float pivot pin
38	7663-30	-	1	Banjo fibre washer, inner
39	7660-38	$ 46.1	1	Fuel banjo, single standard
40	1419-29	$ 5.5	1	Fuel filter
41	7662-30	-	1	Banjo fibre washer, outer
42	7659-34	$ 7.6	1	Banjo bolt
43	7661-38	$ 48.6	1	Fuel banjo, double standard
44	7540-30	$ 1.3	2	Idle jet gasket
45	8869-32	$ 13.5	2	Idle jet holder
46	7513-34	$ 8.5	2	Counterweight Cap screw
47	9337-42	$ 7.3	2	Counterweight
48	8543-61	$ 10.6	2	Counterweight spring
49	6415-03	$ 3.6	2	Pump jet ball bearing
50	7852-34	-	2	Pump jet holder
51	6173-30	$ 1.1	2	Pump jet gasket
52	6426-30	-	2	Pump jet cap fibre washer
53	8176-37	$ 8.6	2	Air bypass
54	7959-34	$ 5.3	2	Vacuum blanking screw
55	8857-34	$ 11.4	2	G/H prog. blanking screw
56	9335-37	$ 10	2	Idle mixture screw
57	9336-61	$ 2.2	2	Mixture screw spring
58	8260-23	-	2	Mixture screw washer
59	8678-30	-	2	Air bleed screw O ring
60	6898-36	$ 5.3	1	Throttle stop screw
61	4670-61	$ 4.8	1	Throttle stop screw spring
62	4650-23	-	1	Washer
63	7540-30	$ 1.3	1	O ring
64	6423-27	$ 1.2	2	Spindle nut
65	6581-23	$ 1.8	2	Spindle nut lock washer
66	7516-26	$ 28.6	1	Throttle lever
67	7537-23	$ 2.7	2	Spindle washer
68	7490-45	$ 2.3	2	Spindle bearing
69	7958-23	$ 3.7	1	Spindle end cover
70	7626-61	$ 3.6	1	Pump Diaphagm Spring
71	8260-23	-	1	Washer
72	9636-61	$ 4.6	1	Pump rod spring
73	7625-27	$ 5.6	1	Pump rod nut
74	6390-27	$ 1	1	Pump rod lock nut
75	7515-44	$ 11.3	1	Pump Diaphragm
76	7502-67	$ 54.3	1	Pump diaphragm cover
77	5011-23	$ 1.1	4	Spring washer (pump cover)
78	6429-36	$ 1.7	4	Screw (pump cover)
79	7509-30	$ 4.3	1	Pump body gasket
80	7550-90	-	1	Pump body
81	7542-33	$ 20	1	Pump non-return valve
82	7540-30	$ 1.3	1	Washer
83	6416-36	$ 2.3	4	Throttle plate screw
84	4997-23	-	4	Diaphragm cover spring washer
85	7526-36	$ 1.6	4	Pump body screw
86	7507-36	$ 7.4	2	Venturi grub screw
87	6423-27	$ 1.2	2	Grub screw nut
88	7630-36	$ 5.3	2	Stud
89	7957-61	$ 4.9	1	Throttle return spring (std)
90	7667-36	$ 4.4	1	Pump rod clamp screw
91	8307-26	$ 40.1	1	Pump rod assy
92	3793-21	$ 1.3	1	Split pin (balance lever)
93	7496-22	$ 7	1	Balance lever pin
94	2638-61	$ 1.7	1	Balance lever spring
95	8304-26	$ 21.3	1	Lotus balance lever
96	7668-39	$ 51	1	Throttle spindle
97	9336-61	$ 2.2	1	Pump rod spring
98	9662-35	$ 3.1	1	Pump rod tube
99	9664-61	$ 5.6	1	Pump rod spring
100	6782-27	-	1	Pump rod nut
101	9663-61	$ 2.2	1	Pump diaphgram spring
102	9667-44	$ 11.3	1	Pump diaphragm
103	9665-67	$ 54.3	1	Pump diaphragm cover
999	8083-40.02	-	2	Pump jet
