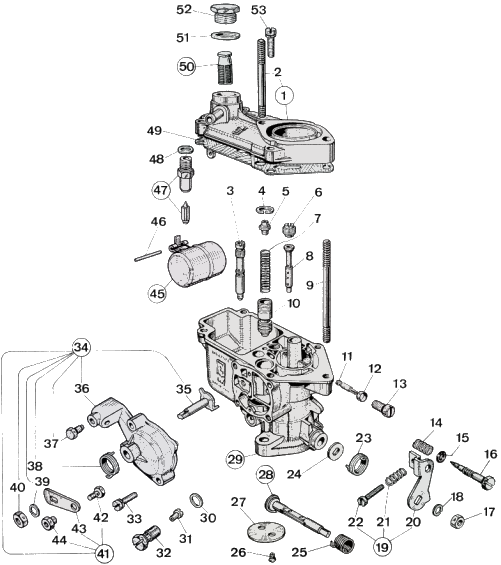

WEBER 26 IMB parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
131706.013$ 01Carburetor cover Assy, including:
264955.107$ 01— Stud bolt
341205.101$ 11.51Starter Jet
410140.010$ 3.31Clip
512775.004$ 4.61Spring guide and retainer
641360.001$ 3.21Air bleed jet
747600.086$ 21Starter Valve Spring
861440.212$ 15.21Emulsion Tube
964955.022$ 10.61— Stud bolt
1064330.005$ 01Starter Valve
1141160.001$ 6.81Idle jet
1241555.004$ 01Pump Jet Cover O ring
1352570.005$ 6.81Idle Jet Holder
1447600.095$ 2.61Idle Mixture Screw Spring
1541565.010$ 01Idle Mixture Screw O Ring
1664750.030$ 13.91Idle Mixture Screw
1734705.001$ 0.81Nut
1855525.001$ 01Spring Washer
1945041.006$ 01Throttle Lever Assembly Includes
2045039.008$ 01— Throttle lever
2147600.084$ 5.61— Spring
2264625.003$ 01— Throttles adjusting screw
2347610.004$ 5.31— Lever return spring
2455555.013$ 01Washer For Shaft
2547610.044$ 5.31Throttle Return Spring
2664570.005$ 3.21Throttle Plate Screw
2764005.016$ 02Throttle Valve
2810015.437$ 52.61Throttle shaft
2810016.423$ 01Oversized Throttle Shaft
29$ 01Carburettor body
3041540.001$ 1.8Gasket
3141120.001$ 41Main jet
3141120.001$ 41Main jet
3252590.001$ 20.21Jet Holder
3364700.006$ 02Pump Cover Screw
3432536.004$ 01Cold start unit including:
3510085.002$ 01— Starting shaft
3632534.004$ 01— Choke Housing
3764605.017$ 1.91— Choke Cable Clamp
3847610.004$ 5.31— Lever return spring
3955525.010$ 0.41— Spring washer
4034715.010$ 01— Lever fixing nut
4145027.017$ 17.51— Cold Start Lever Assembly
4264800.002$ 01— Screw securing wire
4341535.015$ 01Needle valve gasket
4345025.003$ 9.61— Throttle Lever
4434720.002$ 9.21— Cold Start Nut
4541015.002$ 01Float
4652000.010$ 21Float Fulcrum Pin
4764235.005$ 9.51Float valve
48$ 01WASHER
4941700.002$ 01Carburettor Cover Gasket
5037022.002$ 5.81Filter element
5141530.024$ 0.31Fuel Filter Gasket
5261002.010$ 6.81Fuel Filter Cover
5364700.005$ 0.64Top Cover Fixing Screw
