| No | Part No | Price | Pcs | Description |
| 1 | Not Serviced | $ 0 | 1 | Carburetor Cover Assy. |
| 2 | 64955.002 | $ 8 | 4 | Stud Bolt |
| 3 | 64700.001 | $ 0.6 | 6 | Carb Cover Fixing |
| 4 | 10020.221 | $ 15.2 | 1 | Choke Shaft & Lever Assy. |
| 5 | 64010.007 | $ 11.9 | 2 | Starting Throttle Valve |
| 6 | 10140.501 | $ 1.7 | 1 | Spring Ring |
| 7 | 52135.018 | $ 3.2 | 1 | Dust Seal Plate |
| 8 | 61070.002 | $ 3.2 | 1 | Dust Seal Plug |
| 9 | 64525.003 | $ 0 | 4 | Choke Plate Fixing Screw |
| 10 | 37022.010 | $ 5.5 | 1 | Strainer Assy. |
| 11 | 61002.018 | $ 11.9 | 1 | Strainer Inspection Plug |
| 12 | 41705.040 | $ 2.7 | 1 | Carb Cover Gasket |
| 13 | 83102.070 | $ 0.3 | 1 | Needle Valve Gasket |
| 14 | 79519 | $ 0 | 1 | Needle Valve Assy. |
| 15 | 41030.019 | $ 48.8 | 1 | Float Assy. |
| 16 | 64900.001 | $ 11.9 | 1 | Pump Discharge Blanking Needle |
| 17 | 41530.013 | $ 0 | 1 | Power Valve Gasket |
| 18 | 64235.016 | $ 19.8 | 1 | Power Valve Assemby |
| 19 | 73801 | $ 4.2 | 2 | Main Jet |
| 20 | 52130.010 | $ 5.2 | 3 | Plate For Shafts |
| 21 | 52130.011 | $ 6.1 | 1 | Plate For Shafts |
| 22 | 55510.081 | $ 2.1 | 1 | Washer For Secondary Shaft |
| 23 | 55525.001 | $ 0 | 1 | Spring Washer |
| 24 | 34705.001 | $ 0.8 | 1 | Secondary Shaft Fixing Nut |
| 25 | 47600.027 | $ 5.2 | 4 | Bush Retaining Spring |
| 26 | 12750.085 | $ 4 | 4 | Bushing For Shafts |
| 27 | 10015.270 | $ 0 | 1 | Primary Main Shaft Assembly |
| 28 | 64005.015 | $ 0 | 1 | Throttle Valve |
| 29 | 64520.027 | $ 0.6 | 4 | Throttle Valve fixing Screw |
| 30 | 12765.047 | $ 0 | 4 | Spacer |
| 31 | 64700.006 | $ 0 | 1 | Pump Cover Screw |
| 32 | 47407.249 | $ 11.9 | 1 | Accelerator Pump Diaphragm Assy. |
| 33 | 47600.107 | $ 9.9 | 1 | Pump Loading Spring |
| 34 | 74403 | $ 4 | 2 | Idling Jet |
| 35 | 41565.002 | $ 0.4 | 2 | Gasket For Idling Jet Holder |
| 36 | 52570.006 | $ 6.9 | 2 | Idling Jet Holder |
| 37 | 45034.090 | $ 16.6 | 1 | Choke Control Lever Assembly |
| 38 | 47610.080 | $ 12.4 | 1 | Spring For Fast Idle Cam |
| 39 | 58000.018 | $ 12.4 | 1 | Spring Retaining Cover |
| 40 | 55555.029 | $ 8.1 | 1 | Washer For Shaft |
| 41 | 32486.076 | $ 0 | 1 | Accel. Pump Cover Assy. |
| 42 | 64700.008 | $ 6 | 3 | Choke Fixing Screw |
| 43 | 10085.033 | $ 16.6 | 1 | Auto Choke Shaft & Lever Assy |
| 44 | 64615.005 | $ 0 | 1 | Screw For Plate |
| 45 | 41530.002 | $ 1.9 | 1 | Seal For Water Cover Fixing Screw |
| 46 | 64610.014 | $ 7.1 | 1 | Water Cover Fixing Screw |
| 47 | 32444.005 | $ 60.6 | 1 | Auto Choke Water Chamber |
| 48 | 41555.001 | $ 0.4 | 1 | Water Cover Gasket |
| 49 | 52135.006 | $ 5.9 | 1 | Thermostat Assy Locking Ring |
| 50 | 57804.139 | $ 86.2 | 1 | Auto Choke Thermostat Assy |
| 51 | 41640.005 | $ 3.2 | 1 | Gasket For Auto Choke Body Assy |
| 52 | 52130.012 | $ 8.1 | 1 | Plate For Auto Choke Shaft |
| 53 | 57804.074 | $ 23.4 | 1 | Auto Choke Body Assy |
| 54 | 47407.056 | $ 25.1 | 1 | Choke Diaphragm Assy |
| 55 | 47600.141 | $ 3.7 | 1 | Spring For Diaphagm |
| 56 | 32384.020 | $ 16.6 | 1 | Auto Choke Cover |
| 57 | 64700.007 | $ 0 | 3 | Screw Securint Auto Choke Cover |
| 58 | 61015.003 | $ 0 | 1 | Plug |
| 59 | 64595.005 | $ 9.9 | 1 | Diaphragm Adjusting Screw |
| 60 | 32610.005 | $ 1.5 | 1 | Pin For Fast Idle Rod |
| 61 | 61280.082 | $ 1.3 | 1 | Fast Idling Control Rod |
| 62 | 55510.003 | $ 10.2 | 1 | Washer For Fast Idle Loose Lever |
| 63 | 45041.053 | $ 17.5 | 1 | Fast Idling Loose Lever Assy Including |
| 64 | 45039.056 | $ 16.6 | 1 | -Lever |
| 65 | 47600.007 | $ 2.4 | 1 | -Spring |
| 66 | 64590.004 | $ 5.1 | 1 | -Screw |
| 67 | Not Serviced | $ 0 | 1 | Spring Washer |
| 68 | 34705.001 | $ 0.8 | 1 | Throttle Shaft Fixing Nut |
| 69 | 41565.008 | $ 0.9 | 1 | Auto Choke ´O" Ring Seal |
| 70 | 55530.005 | $ 5.9 | 1 | Washer For Loose Lever |
| 71 | 12765.042 | $ 10.2 | 1 | Bushing For Fast Idle Loose Lever |
| 72 | 64700.014 | $ 1 | 1 | Fast Idle Loose Lever Screw |
| 73 | 64525.017 | $ 0 | 1 | Throttle Adjusting Screw |
| 74 | 47600.007 | $ 2.4 | 1 | Spring For Throttle Adjusting Screw |
| 75 | 45046.023 | $ 0 | 1 | Toothed Sector Control Lever |
| 76 | 12750.092 | $ 11.8 | 1 | Bushing For Toothed Sector |
| 77 | 45136.029 | $ 13 | 1 | Throttle Control Lever |
| 78 | 34715.014 | $ 1.1 | 1 | Primary Shaft Fixing Nut |
| 79 | 55520.002 | $ 1.1 | 1 | Lock Washer |
| 80 | Not Serviced | $ 0 | 1 | Toothed Sector Fixing Screw |
| 81 | 55535.001 | $ 0 | 1 | Wave Washer |
| 82 | Not Serviced | $ 0 | 1 | Flat Washer |
| 83 | 58202.024 | $ 23.9 | 1 | Primary Toothed Sector |
| 84 | 10015.354 | $ 36.6 | 1 | Secondary Main Shaft Assembly |
| 85 | 47610.089 | $ 0 | 1 | Shaft Return Spring |
| 86 | Not Serviced | $ 0 | 1 | Carburetor Body |
| 87 | 64750.001 | $ 4 | 2 | Idle Adjusting Screw |
| 88 | 47600.007 | $ 2.4 | 2 | Spring For Idle Adjusting Screw |
| 89 | 61440 | $ 15.3 | 2 | Emulsion Tube |
| 90 | 52000.015 | $ 1.9 | 1 | Float Fixing Pin |
| 91 | 64700.007 | $ 0 | 3 | Power Valve Retaining Screw |
| 92 | 55510.038 | $ 0 | 3 | Washer For Control Valve Screw |
| 93 | 57804.025 | $ 0 | 1 | Carb Power Valve Assy |
| 94 | 77201 | $ 3.4 | 1 | Air Corrector Jet |
| 95 | 41540.014 | $ 2.6 | 2 | Pump Jet Gasket |
| 96 | 76212 | $ 14.5 | 1 | Accelerator Pump Jet |
| 97 | 64290.024 | $ 22.2 | 1 | Pump Delivery Valve Assy |
| 98 | 70936.450 | $ 0 | 2 | Auxiliary Venturi |
| 99 | 57804.509 | $ 0 | 1 | Choke Device 37-43, 52-59,67,68 |

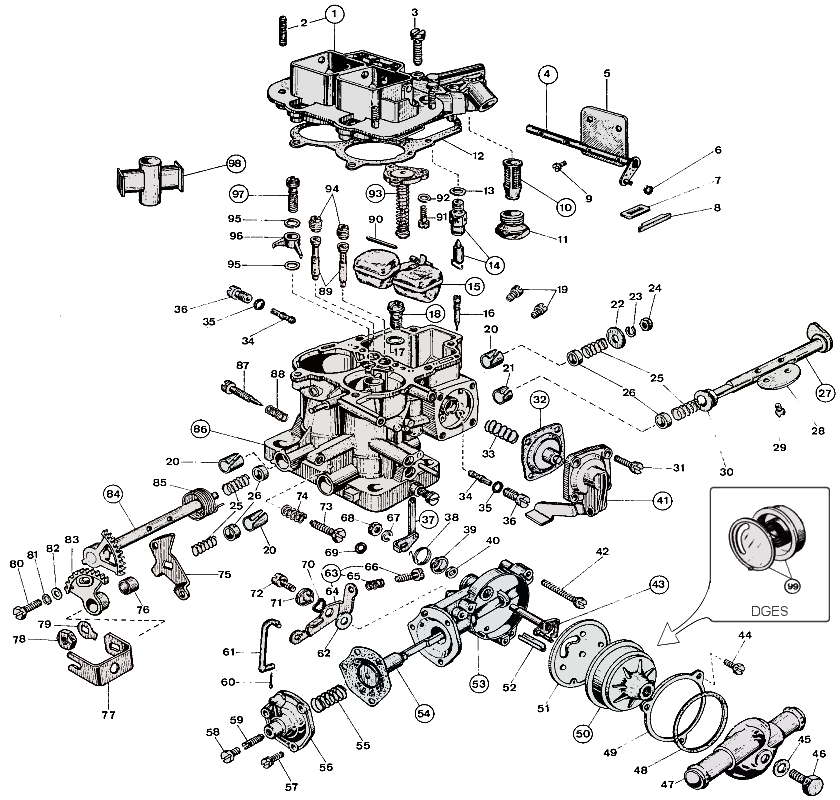

Download exploded view as PDF
