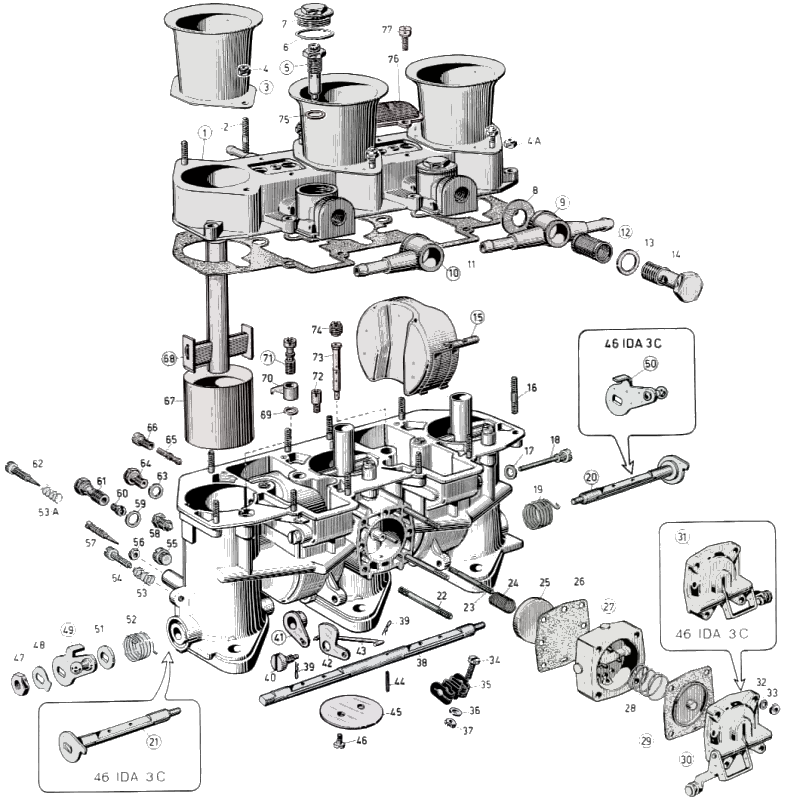

WEBER 46 IDA 3C parts diagram

- click on part to see more

List of parts:

No	Part No	Price	Pcs	Description

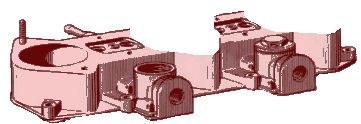

1	31726.001	-	1	Carburetor cover including
2	64955.014	-	6	Stud
3	52845.006	-	3	Air intake
4	34725.003	-	6	Nut
4-A	34725.003	-	10	Nut
5	64240.009	$ 21.2	2	Needle valve
6	41530.035	$ 5.4	2	Gasket
7	61002.005	$ 28.6	2	Plug
8	41530.004	-	2	Gasket
9	10356.005	$ 43.2	1	Filter Body
10	10356.002	$ 43.2	1	Filter Body
11	41710.001	$ 7.1	1	Gasket
12	37022.001	$ 23.3	2	Filter Gauze
13	41530.001	$ 2	2	Gasket
14	12715.014	$ 12.4	2	Plug
15	41015.007	$ 30.1	2	Float
16	64955.012	-	10	Stud
17	41530.017	-	2	Gasket
18	64900.012	$ 23.8	2	Fulcrum screw
19	47610.072	$ 4.5	1	Spring
20	10015.458	-	1	Spindle 46 IDA 3C1
20	10016.442	-	1	Spindle oversize - 46 IDA 3C1 .
21	10015.457	-	1	Spindle 46 IDA 3C
21	10016.443	-	1	Spindle oversize - 45 IDA 3C
22	64955.011	-	2	Stud
23	64955.017	-	2	Stud
24	47600.128	-	1	Spring
25	64190.004	-	1	Pump valve
26	47405.011	$ 2.1	1	Diaphragm
27	39174.002	-	1	Pump Body
28	47600.012	-	1	Spring
29	47407.010	$ 30.1	1	Diaphragm
30	32486.009	-	1	Pump Cover - 46 IDA 3C1
31	32486.010	-	1	Pump Cover - 46 IDA 3C
32	55525.007	$ 1	4	Spring washer
33	34705.002	-	4	Nut
34	64615.006	-	2	Screw
35	32270.001	-	1	Elastic joint
36	55510.038	-	2	Flat washer
37	34705.002	-	2	Nut
38	10005.412	-	1	Spindle
38	10006.408	-	1	Spindle oversize
39	32610006	-	2	Spilt pin
40	64895.002	-	1	Fulcrum screw
41	45027.007	-	1	Lever
42	14855.003	-	1	Cam
43	61280.031	-	1	Tie rod
44	58445.001	-	1	Spring pin
45	64005.006	-	3	Throttle
46	64520.027	-	6	Screw
47	34715.014	$ 1.2	1	Nut
48	55520.002	$ 1.2	1	Washer
49	45034.007	$ 30.1	1	Control Lever - 46 IDA 3C1
50	45034.011	-	1	Control Lever - 46 IDA 3C
51	55555.019	$ 1.7	1	Washer
52	47610.071	$ 4.5	1	Spring
53-A	47600.007	$ 2.6	3	Spring
53	47600.007	$ 2.6	1	Spring
54	64590.002	$ 2.3	1	Throttle adjusting screw
55	61015.009	$ 7.5	3	Progression hole inspection screw
56	34705.001	-	3	Nut
57	64750.002	$ 9.4	3	Air adjusting screw
58	64840.001	-	3	Choke fixing screw
59	41540.001	$ 2	3	Gasket
60	41120.001	$ 4.4	3	Main jet
61	52590.001	$ 9.5	3	Jet holder
62	64750.001	$ 3.8	3	Idling mixture adjusting screw
63	41530.008	-	2	Gasket
64	61002.006	$ 4.4	2	Plug
65	41160.003	$ 3.5	3	Idling jet
66	52570.005	$ 9.4	3	Jet-holder
67	34894.004	-	3	Choke
68	31966.004	-	3	Secondary Venturi
69	41530.012	-	3	Gasket
70	41252.001	$ 13	3	Pump jet
71	64290.005	$ 34.6	3	Delivery valve
72	64290.001	$ 10.4	1	Intake valve
73	61440.213	$ 11.3	3	Emulsioning tube
74	41360.001	$ 3.5	3	Air corrector jet
75	41530.022	-	2	Gasket
76	37012.003	-	2	Filter element
77	64700.007	-	4	Screw

WEBER 46 IDA 3C
Exploded view

https://www.carbparts.euPrices and product availability are subject to change

WEBER 46 IDA 3C
List of parts

https://www.carbparts.euPrices and product availability are subject to change

No	Part No	Price	Pcs	Description
1	31726.001	-	1	Carburetor cover including
2	64955.014	-	6	Stud
3	52845.006	-	3	Air intake
4	34725.003	-	6	Nut
4-A	34725.003	-	10	Nut
5	64240.009	$ 21.2	2	Needle valve
6	41530.035	$ 5.4	2	Gasket
7	61002.005	$ 28.6	2	Plug
8	41530.004	-	2	Gasket
9	10356.005	$ 43.2	1	Filter Body
10	10356.002	$ 43.2	1	Filter Body
11	41710.001	$ 7.1	1	Gasket
12	37022.001	$ 23.3	2	Filter Gauze
13	41530.001	$ 2	2	Gasket
14	12715.014	$ 12.4	2	Plug
15	41015.007	$ 30.1	2	Float
16	64955.012	-	10	Stud
17	41530.017	-	2	Gasket
18	64900.012	$ 23.8	2	Fulcrum screw
19	47610.072	$ 4.5	1	Spring
20	10015.458	-	1	Spindle 46 IDA 3C1
20	10016.442	-	1	Spindle oversize - 46 IDA 3C1 .
21	10015.457	-	1	Spindle 46 IDA 3C
21	10016.443	-	1	Spindle oversize - 45 IDA 3C
22	64955.011	-	2	Stud
23	64955.017	-	2	Stud
24	47600.128	-	1	Spring
25	64190.004	-	1	Pump valve
26	47405.011	$ 2.1	1	Diaphragm
27	39174.002	-	1	Pump Body
28	47600.012	-	1	Spring
29	47407.010	$ 30.1	1	Diaphragm
30	32486.009	-	1	Pump Cover - 46 IDA 3C1
31	32486.010	-	1	Pump Cover - 46 IDA 3C
32	55525.007	$ 1	4	Spring washer
33	34705.002	-	4	Nut
34	64615.006	-	2	Screw
35	32270.001	-	1	Elastic joint
36	55510.038	-	2	Flat washer
37	34705.002	-	2	Nut
38	10005.412	-	1	Spindle

No	Part No	Price	Pcs	Description
38	10006.408	-	1	Spindle oversize
39	32610006	-	2	Spilt pin
40	64895.002	-	1	Fulcrum screw
41	45027.007	-	1	Lever
42	14855.003	-	1	Cam
43	61280.031	-	1	Tie rod
44	58445.001	-	1	Spring pin
45	64005.006	-	3	Throttle
46	64520.027	-	6	Screw
47	34715.014	$ 1.2	1	Nut
48	55520.002	$ 1.2	1	Washer
49	45034.007	$ 30.1	1	Control Lever - 46 IDA 3C1
50	45034.011	-	1	Control Lever - 46 IDA 3C
51	55555.019	$ 1.7	1	Washer
52	47610.071	$ 4.5	1	Spring
53-A	47600.007	$ 2.6	3	Spring
53	47600.007	$ 2.6	1	Spring
54	64590.002	$ 2.3	1	Throttle adjusting screw
55	61015.009	$ 7.5	3	Progression hole inspection screw
56	34705.001	-	3	Nut
57	64750.002	$ 9.4	3	Air adjusting screw
58	64840.001	-	3	Choke fixing screw
59	41540.001	$ 2	3	Gasket
60	41120.001	$ 4.4	3	Main jet
61	52590.001	$ 9.5	3	Jet holder
62	64750.001	$ 3.8	3	Idling mixture adjusting screw
63	41530.008	-	2	Gasket
64	61002.006	$ 4.4	2	Plug
65	41160.003	$ 3.5	3	Idling jet
66	52570.005	$ 9.4	3	Jet-holder
67	34894.004	-	3	Choke
68	31966.004	-	3	Secondary Venturi
69	41530.012	-	3	Gasket
70	41252.001	$ 13	3	Pump jet
71	64290.005	$ 34.6	3	Delivery valve
72	64290.001	$ 10.4	1	Intake valve
73	61440.213	$ 11.3	3	Emulsioning tube
74	41360.001	$ 3.5	3	Air corrector jet
75	41530.022	-	2	Gasket
76	37012.003	-	2	Filter element
77	64700.007	-	4	Screw
